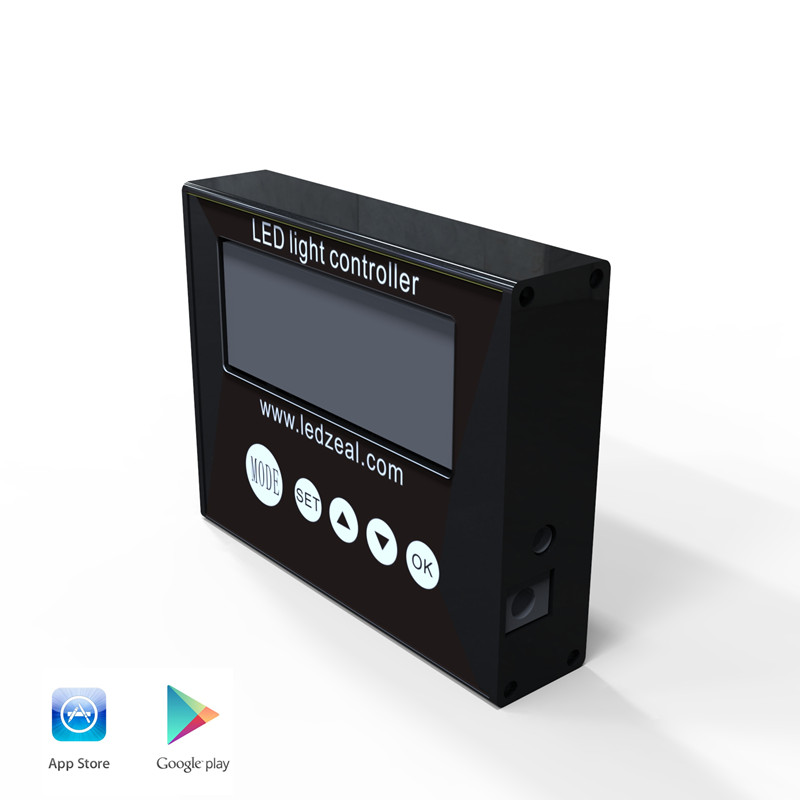

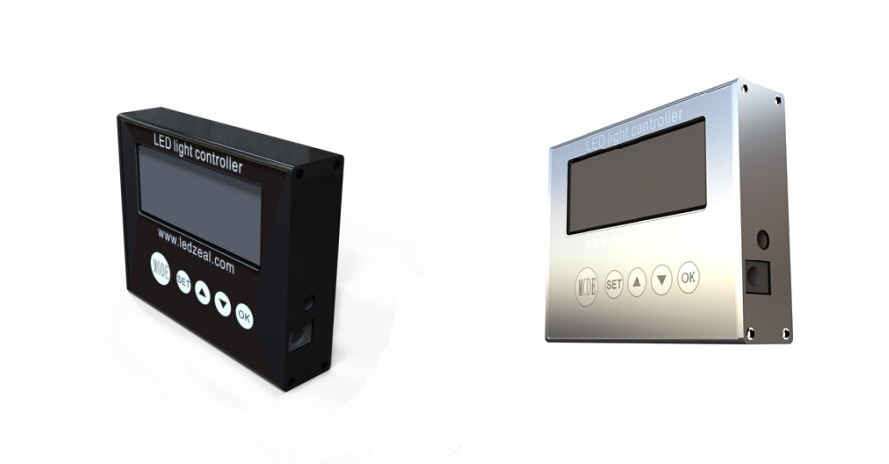

Introducing New Wifi Smart Controller GrowZealer



 Dual Control



        Smart Controller and iOS (iPhone. iPhone)& Android app Wifi control.



 Sync & Real time Display



           Snyc light change to controller while operating on your  phone

        Light status real time shown on controller without checking the phone



 Multi Modes



        Manual mode, My program (including pre-set and  DIY program), Flash Mode etc



Daisy-Chain System



            One AquaZealer controlling as much as 250 units daisy-chained synchronously



iOS & Android app available



              Search “GrowZealer” in app store or google play.

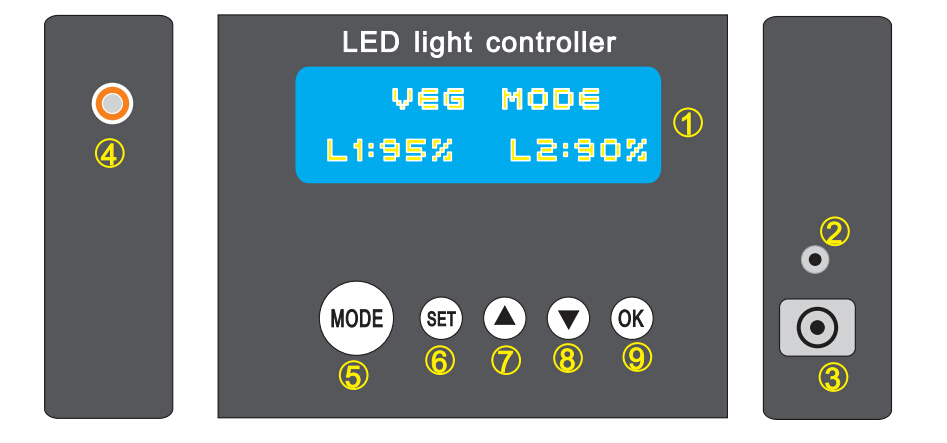

1. LCD screen

2. Signal output port

3.  For power supply input port

4. WIFI antenna port (optional)

5. Mode: Change mode

6.SET: Change setting item

7. UP: Raise setting value

8. DOWN: Lower setting value

9. OK: Confirm setting and changeto other setting items

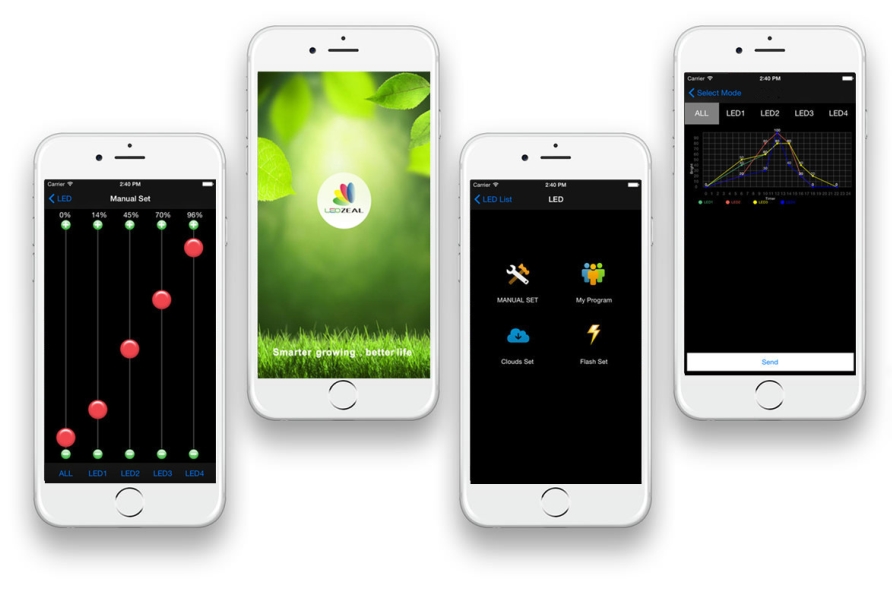

 UI Presentation







Pre-Programmed Modes

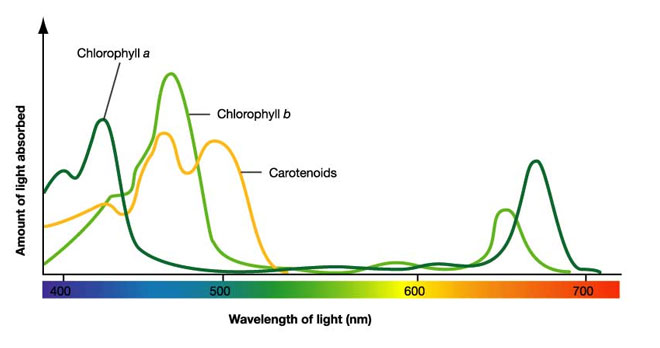

The wavelength of light in photosynthesis



The typical full spectrum led channels layout are as bellows:
L1: 630nm Red
L2: 660nm Red
L3:Blend of royal blue 460nm ,410nm UVB,660nm red and 850nm Far red etc
L4:Blend of 630nm red ,6000K and 12000K White


The light intensity of each channle’s led are gradually changed from 0~100% at 24 hours simulate theVeg, Flower ,Cropmode.

The light intensity is dimming from almost every hour to next to fully simulat the optimized natural light enviroment for plants.
Light intensity&time changing ofeach channel in 24 hours one day

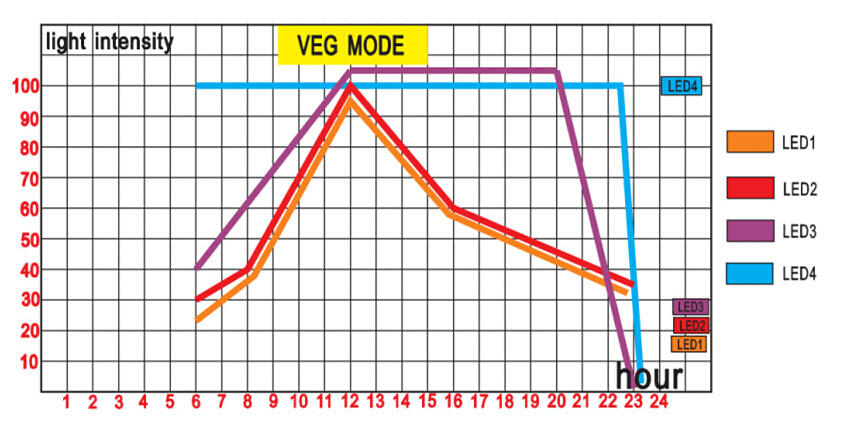

The first phase of plants growing , 460nm blue led channel 50% on from 6am and gradually

up to 100% at 12 and last 8hours, 630nm&660nm gradually changing .

16 hours on / 8 hours off .

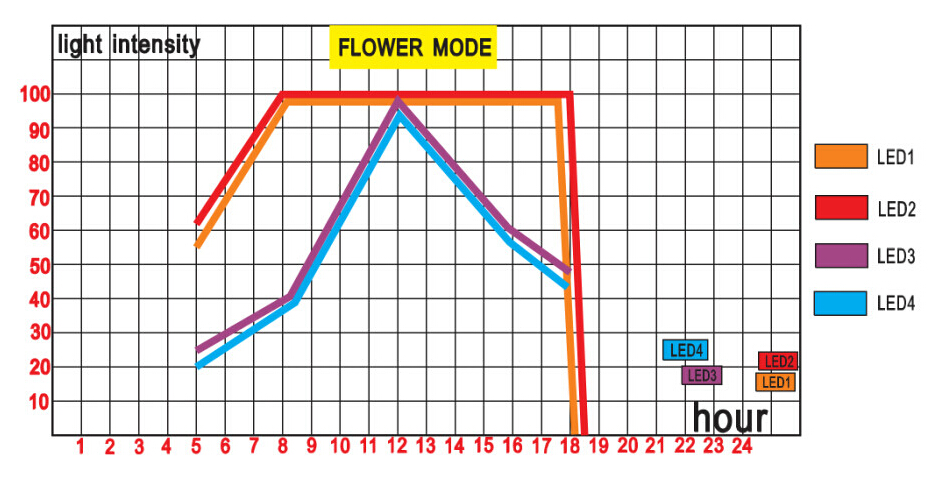

 In the second phase of plants which in strong demand of red spectrum, 630nm and

660nm red keep all 100% on from 8am to 9pm. Blue,violet, white,far red gradually changing.

12 hours on / 12 hours off .

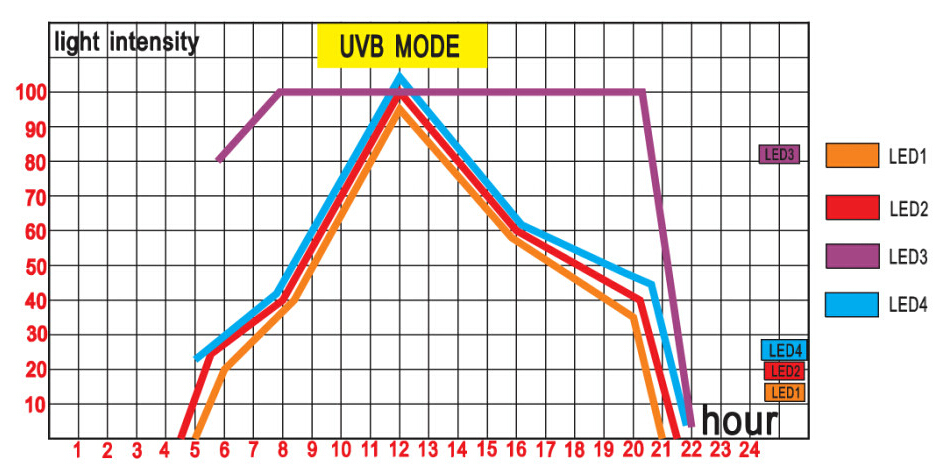

During the last phase ,410nm UV and 460nm blue keep 80%~100% on in 24 hours

while the spectrum 630~850nm and white intensity gradually changing .

14 hours on / 10 hours off .






DIY mode





We fully understand your desire to DIY programme your led light for your plants,

So here it is. 8 time point settable donw to minute ,light intensity settable down to 1% with 4 channels.

Now it has upgraded to 3 sets of DIY mode optional .



Manual mode





Manul mode is the easiest way to dim any led channel instanly from 0~100% by 1%

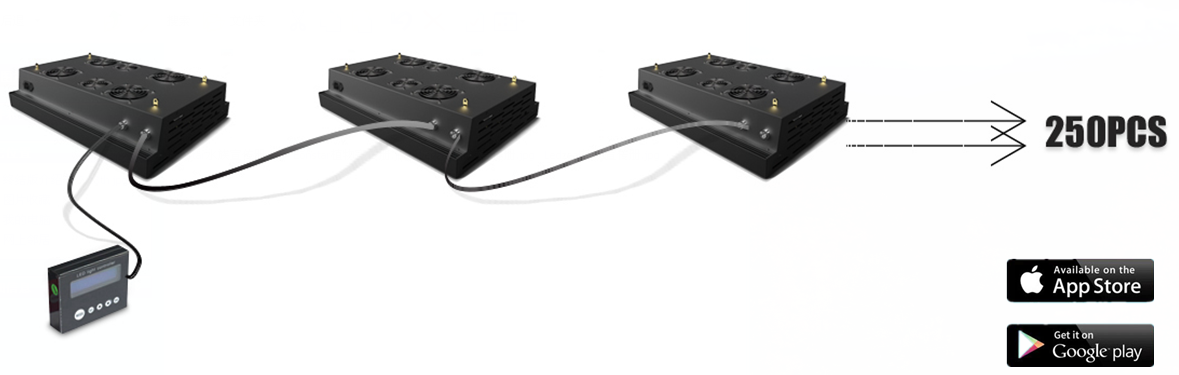

Daisy-Chain controlling system



 Simple daisy-chain system set-up



 One controller for maxium 250 units



 Syncronously control without any delay









 Download App



 Download the app in App store (for iPhone, iPad) and Google Play (for Android phones ,tablets )

by seaching "GrowZealer", or scan the QR code directing to the download page.



App Store :                                                                                        Google Play :
